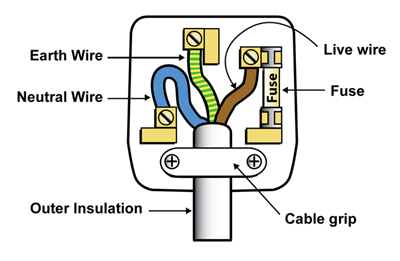

Wiring a UK Three Pin Plug
You should be aware that when you are replacing an existing plug (perhaps because it has been damaged) the colours of the wires in a mains lead may not correspond with the coloured markings identifying the terminals in the plug. Assuming that you have a modern cable with Brown, Blue and Green and Yellow cores you should proceed as follows:
- The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN or GREEN and YELLOW.
- The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.
- The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.
